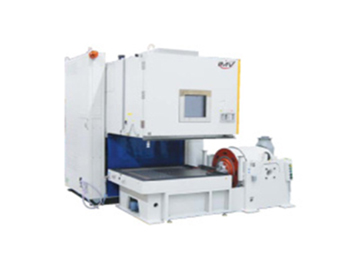

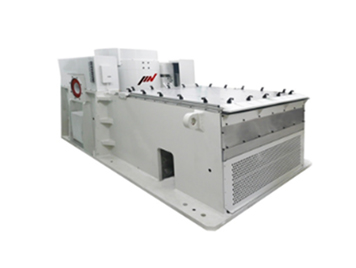

중형 진동 시험기
- - Model : V8-440 (LDS)
- - Sine force : 60 kN
- - Random force RMS : 66 kN
- - Displacement : 63 mm(p-p)
- - Acceleration : Sine (140 g), Random (50 g r.m.s)
- - Table Size : 900 X 900 mm
|
|
진동 측정 및 분석기
- - Model : LMS SCADAS Mobile SCM01 (SIMENS)
- - Channels : 8 CH
- - Input Frequency Range : (0 ~ 102.4) kHz
- - Dynamic Range : 110 dB
- - Analysis Program S/W :
Modal Impact Testing, FFT Analyzer, Tracked FFT functions, Octave based functions, Sound Level Meter functions, Order analyzer functions
|
|
항온항습기 (3 EA)
- - Model : PL-4J (ESPEC)
- - Temperature : -40 ℃ ~ 180 ℃
- - Humidity : 20 %R.H. ~ 98%R.H.
- - Deviation : ±0.3 ℃, ±2.5%R.H.
- - Cooling rate : Average 2.0 ℃/min
- - Heating rate : Average 2.0 ℃/min
- - Inside Size : 1,000 X 800 X 1,000 mm (W, D, H)
|
|
항온항습기 (7 EA)
- - Model : PSL-4J (ESPEC)
- - Temperature : -70 ℃ ~ 180 ℃
- - Humidity : 20 %R.H. ~ 98%R.H.
- - Deviation : ±0.3 ℃, ±2.5%R.H.
- - Cooling rate : Average 2.0 ℃/min
- - Heating rate : Average 2.0 ℃/min
- - Inside Size : 1,000 X 800 X 1,000 mm (W, D, H)
|
|
가속 온/습도 챔버 (2 EA)
- - Model : EBE-8 (ESPEC)
- - Temperature : -70 ℃ ~ 180 ℃
- - Humidity : 20 %R.H. ~ 98%R.H.
- - Deviation : ±0.3 ℃, ±2.5%R.H.
- - Cooling rate : Average 20.0 ℃/min
- - Heating rate : Average 20.0 ℃/min
- - Cooling rate : Average 10.0 ℃/min
- - Heating rate : Average 10.0 ℃/min
- - Inside Size : 1,000 X 800 X 1,000 mm (W, D, H)
|
|
열충격챔버(1 EA)
- - Model : TSD-101-W (ESPEC)
- - Temperature : -65 ℃ ~ 300 ℃
- - Recovery Time : Within 5min
- - Inside Size : 700 X 300 X 400 mm (W, D, H)
|
|
열충격챔버 (1 EA)
- - Model : TSA-1100HS (ESPEC)
- - Temperature : -65 ℃ ~ 180 ℃
- - Recovery Time : Within 5min
- - Inside Size : 1,000 X 1,000 X 1,100m (W, D, H)
|
|
중 / 대형 룸챔버 (2 EA)
- - Model : EBE-2EW6P2E4F_38M (ESPEC)
EBE-8E30W6P2T4L_38M (ESPEC)
- - Temperature : -60 ℃ ~ 100 ℃
- - Humidity : 10 %R.H. ~ 98%R.H.
- - Deviation : ±0.3 ℃, ±4.5%R.H.
- - Cooling rate : Average 1.0 ℃/min
- - Heating rate : Average 1.0 ℃/min
- - Inside Size : 2,000 X 2,000 X 2,000 mm (W, D, H)
4,000 X 4,000 X 3,500 mm (W, D, H)
|
|
고도시험기 (1 EA)
- - Model : MAT-1000 (Terdny)
- - Temperature : -70 ℃ ~ 150 ℃
- - Pressure : Normal ~ 0.5 kPa
- - Feet : Normal ~ 130,000
- - Deviation : ≤±2kPa (≥40kpa) ≤±5% (2 ~40kpa)
- - Inside Size : 1,000 X 1,000 X 1,000 mm (W, D, H)
|
|
분진시험기 (2 EA)
- - Model : P14.46 (PLT)
- - Vacuum : -20 mbar
- - Talcum : 2 kg/㎥
- - IP : 5X, 6X
- - Inside Size : 700 X 300 X 700 mm (W, D, H)
- - Inside Size : 2,000 X 2,000 X 2,500 mm (W, D, H)
|
|
살수시험기 (1 EA)
- - Model : 살수시험기 (KTR)
- - IP : X1, 2, 3, 4, 5, 6, 6K, 7, 9K
- - 회전각 : ±60˚, ±180˚ (X3, X4)
- - 시험유량 : 12.5L/min (X5), 100L/min (X6)
|
|
가속도시험기 (1 EA)
- - Model : 가속도시험기 (GU)
- - 최대 가속도 : 100 g
- - 최대 하중 : 150 kg
- - 슬립링 : 24 ch, 2A/ch, AC, DC 사용가능
- - Arm Size : 1,500 mm(r)
- - Table Size : 800 X 800 mm
|
|
경사도 시험기 (1 EA)
- - Model : 경사도 시험기 (세종F.A)
- - 기울기 : 단면 최대 (25˚), 전면 최대 (50˚)
- - 최대 하중 : 1.5 ton
- - 속도조절 : 1회 왕복시간 설정 가능
- - Table Size : 1,200 X 1,200 mm
|
|
낙하 시험기 (1 EA)
- - Model : 낙하 시험기 ((주)뉴런핏)
- - Test 높이 : 300 ~ 1 800 mm
- - 최대 하중 : 60 kg
- - 높이제어 : 수동제어
- - 낙하 방식제어 : 수동제어 (모서리, 바닥 등)
- - 바닥판 Size : 1 200 X 1 500 mm
|
